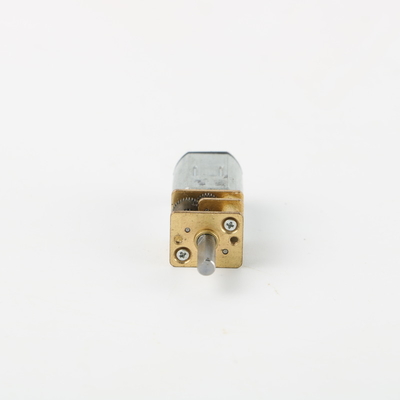

1.Widely used in toy,robot,lock. Auto shutter, USB fan,Slot machine,Money detector,
Coin refund devices,Currency count machine, Towel dispensers,
Automai\tic doors,Peritoneal machine,Automatic TV rack,
Office equipemt ,Household appliances,Automatic
2.Voltage:3-12V
3.Speed:3-6000RPM
4.Stall Torque: 9.0kg.cm max.
5.Low noise,low current no spark
6.Motor with encoder,12 pulse signal each rotation of shaft
7.Reduction Ratio:5:1 to 1000:1
8.size:dia12mm ,with customized length
9.We can offer the samples first ,the MOQ is 1 piece ,the delivery time is 15-20 days.
ro r
| Typical Applications | Description OF THE SPECIFICATION |
|
Toy,robots HI-stall 1.6A MI-stall 0.7A LO-stall 0.36A |
GEAR RATIO: HI-NO LOAD SPEED MI-NO LOAD SPEED LOW-NO LOAD SPEED
1:5 6000 RPM / 2500 RPM
1:10 3000 RPM 2200 RPM 1300 RPM
1:30 1000 RPM 730 RPM 440 RPM
1:50 625 RPM 420 RPM 250 RPM
1:75 400 RPM 290 RPM 170 RPM
1:100 320 RPM 220 RPM 120 RPM
1:150 200 RPM 150 RPM 85 RPM
1:210 140 RPM / 60 RPM
1:250 120 RPM / 50 RPM
1:298 100 RPM 75 RPM 45 RPM
1:1000 32 RPM / 14 RPM |
|
MOTOR MODEL WITHOUT GEARBOX |
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT |
TORQUE
|
OUTPUT
|
TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
|
XH-GM12
|
18100-220 | 3.0-12.0 | 6.0 | 30000 | 0.20 | 18000 | 0.60 | 0.120 | 1.233 | 0.60 | 0.393 | 4.003 | 2.15 |
| 14150-120 | 3.0-12.0 | 6.0 | 22000 | 0.16 | 13200 | 0.30 | 0.035 | 0.362 | 0.29 | 0.200 | 2.055 | 0.87 | |
duct
ion gearbo
Shenzhen xinhe motor Co., Ltd is dedicated to the design and production of AC &DC motors, which are widely used in household appliances, electric toys and power tools .And we can also can design the motors according to the client’s requirements.
our company is located in shenzhen city and Our factory with The total factory area is about 7500 square meters. We owns high technology support and advanced production equipment. And we have a team of specialists in engineering, manufacturing, quality control, production management and technology development.
Our company comprehensively promotes ISO9001:2001 management systems and are exporting our motors to many countries with different applications ,like Europe, America, Middle East , East Asia, South America market. With competitive price and good quality, we hope to build a long term business relationships with every partner on the mutual benefit.
