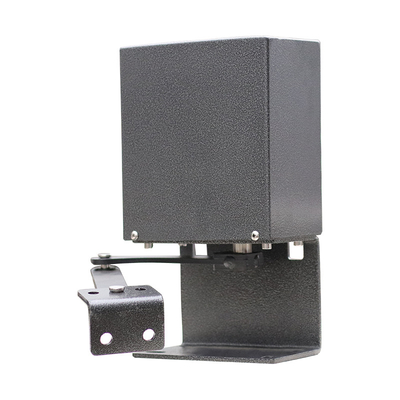

Modern Door Operator Contactless Swing Door Opener Automatic Electric Motor

2 Sets
MOQ
$275.00(2 - 9 Sets) $245.00(10 - 99 Sets) $210.00(>=100 Sets)
Price
Modern Door Operator Contactless Swing Door Opener Automatic Electric Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 2 Years
After-sale Service: Online Technical Support, Free Spare Parts, Return And Replacement
Project Solution Capability: Graphic Design, 3D Model Design, Total Solution For Projects, Others
Application: Hotel, Variety
Design Style: Modern
Model Number: PYTT120
Name: Swing Gate Operator
Usage: Auto Doors
Power Supply: DC24V
Remote Control: 50meters
Function: Soft-start Slow-stop
Max. Gate Weight: 120KG
MOQ: 1 Pc
Advantage: Self-learning Function
Rated Power: 25W
Basic Infomation
Model Number: PYTT120
Payment & Shipping Terms
Packaging Details: Thick carton package , and the pearl cotton EPE foam packaging with shockproof compression is used internally. The equipment can be effectively protected in transit.
Product Description
Product Description

Application scope of automatic door controller

It is applicable to the entrance and exit of pedestrian passage, garage, hotel, unit door, school, office and other places requiring intelligent control.
 Main Technical Parameters
Product Types
KMJ120
Range of application
 Various flat-open doors with
the width ≤ 1400mm and the weight ≤ 120Kg
Open Angle
90°
Power Supply
DC24V 5A
Rated Power
 25W
Static Power
0.5W（no electromagnetic lock）
Open/Close Speed
 1-9 gears,
adjustable (corresponding opening time 10-3S)
Open Hold Time
1～99 seconds
Functions:
A. Compatible with a variety of access control systems: Access to infrared sensors, human body sensors, remote control, face recognition attendance machine, ICID card reader, button switch, mobile phone Bluetooth and other switch signals of access control system, so as to automatically open door and automatically delay close door . B. The holding time, speed and strength of the door can be adjusted within the allowable range. C. This equipment has the function of resistance reversal, and can also be added with infrared induction for the second protection. D. It has the function of fire fighting linkage.
Details Images




Copper core motor :
 small heating, large torque, low power consumption, more stable operation.
Titanium alloy gear
thick board, stable and durable.

Intelligent main board, microcomputer control system, function upgrading, lightning protection, fire linkage, short circuit protection, various door opening signal inputs.




Circuit board wiring
1. encoder signal
2.infrared radiation
3. key
4.left and right door opening selection
5.digital display
6.motor terminal
7.door opening control signal interface
8.power input interface
9.electromagnetic lock interface
10.remote control




Two types of mounting brackets :
 C bracket for floor mounting
 L bracket for wall or door frame mounting.
Long and short arms optional:.
Select different pull arms according to the site installation position and the width and weight of the door. Generally, the short arm can be selected for the door with a width less than 1 m, and the long arm can be selected for the door with a width of 1-1.6 m.
Installation Cases
Contact customer service
Ready to ship
Packing & Delivery
Thick carton package , and the pearl cotton EPE foam packaging with shockproof compression is used internally. The equipment can be effectively protected in transit. We can also carry out secondary packaging, that is, to wrap a layer of thickened woven bag outside the outer box.
FAQ
1.Can you do OEM for me?
Yes! We do accept all OEM orders, please let's know your requirements, we'll offer you a reasonable price and make samples for you ASAP.
2. Are you accept small order?
Yes, MOQ is 1 SET.
3. What is your delivery time?
Small order: The time of delivery is about 3 days after receipt of deposit. Massive order (Above 100sets): around 10 days after receipt of deposit.
4. What is your terms of payment?
We accept 50% T/T in advance, the balance to be paid before shipping, also we accept ALIBABA payment.
5.Do you need a distributor?
Of course, we are recruiting distributors from all over the world, please contact us for details.
