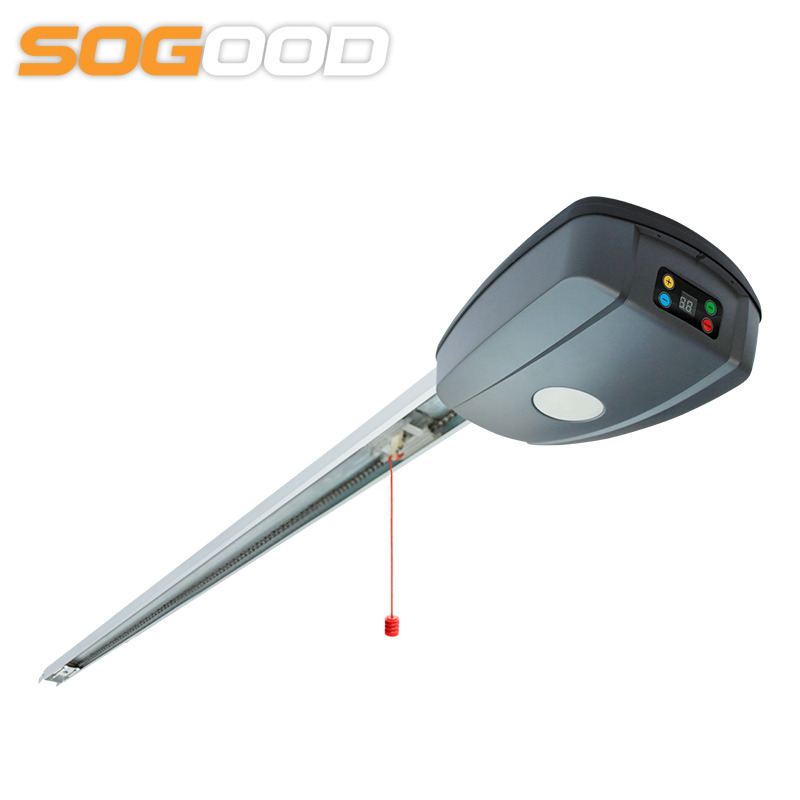

Universal automatic garage door opener motor price
Description:
1) Doors are easily opened by hand by the releasing system in case of power off
2) Simple programming of operation settings
3) Built-in receiver on the control board allows you to program 20 transmitters
4) One push of the remote button and you drive straight into your garage
5) Availability of a lamp for garage lighting (10 W), the courtesy light allows you to see inside the garage
6) Automatic refund function in case of obstacles
7) Availability of automatic closing function with programmed delay time
8) Different torque to suit your garage door: 800N, 1000N, 1200N, 1500N
Advantage:
1. Digital display & easy programming;
2. Remote control with rolling code;
3. Soft start & stop, powerful, low noise;
4. Self-lock fuction;
5. Reverse fuction when meeting obstacle;
6. Door unclosed alarm & automatic door closing fuction.
Main features
A unique brake is provided for accurately stop the door.
In the event of power failure, the release device makes it possible to open and close the door manually.
Thermal protection.
Protection class: IP54;
Excellent sub-zero grease ensures quiet and stable operation, suitable for cold area.
Mechanical & electrical integration.
Wiring terminals for remote control, push button, pressure sensor and infrared photocell.
Comply with the industry standard of China 'Commercial Sectional Door Operator '
|
Model |
KG50 |
KG50S-1 |
KG75S-1 |
|
Power supply |
220×(1±10%)V 50Hz |
380×(1±10%)V 50Hz |
380×(1±10%)V 50Hz |
|
Motor rotate speed |
1400 rpm |
1400 rpm |
1400 rpm |
|
Output rotate speed |
32 rpm |
32 rpm |
24 rpm |
|
Output torque |
30 N.m |
50 N.m |
75 N.m |
|
Motor power |
300 W |
400 W |
400 W |
|
Max. rotation |
28 cycles |
28 cycles |
28 cycles |
|
Barrel diameter |
Ø25.4 mm |
Ø25.4 mm |
Ø25.4 mm |
|
Flat key |
6 mm |
6 mm |
6 mm |
|
Thermal protection |
120ºC |
120ºC |
120ºC |
|
Duty cycle |
S2:20% S3:10min |
S2:25% S3:15min |
S2;25% S3:15min |
|
Ambient temperature |
-20ºC ~+45ºC |
-20ºC ~+45ºC |
-20ºC ~+45ºC |
|
Dimensions |
100*233*360 |
100*233*360 |
100*233*360 |
|
Net weight |
12 kg |
12 kg |
12 kg |
|
Door |
16 m² |
25 m² |
32 m² |
A, What are your main products?
The main products are sectional door,we can offer different materials such as polyurethane sandwich panel, aluminum profile with tempered glass,solid wood,aluminum sheet,laser cut design,and other new materials available.
B. What is the delivery time ?
A: 20 days for the standard colors and 35 days for the customized. Also it depends on the specifications and quantity each order.
C, What is your payment items?
A: Normally if the order amount is below USD5,000 then 100% prepaid,if it is container order,we accept 30% for deposit by T/T and the balance would be arranged before delivery. If you have any other suggestion, please contact with us.
D, Can we place one or two sets for trial?
A: Yes of course,this is the better way of quality check. Also if you dont required one whole set, we have small sample in stock as well, it is free of charge,you just need to handle with the freight.It is a good way to show the sincerity for both of us.
E, How can I konw the price exactly?
A: The price is based on your specific requirements, it is better to provide as much as possible information such as color,size,quantity,market location,sales patterns,all of these would be of help us to quote the exact price.
F, When is your company established?
Our company established and developed trade business in 2009, we has experience in manufacturer and exporter,and specialized in the development and production of sectional door.
