NEW Modern Door Operators Automatic Door Operators

1 Set
MOQ
NEW Modern Door Operators Automatic Door Operators
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
After-sale Service: Online Technical Support, Free Spare Parts, Return And Replacement
Project Solution Capability: Total Solution For Projects
Application: Outdoor
Design Style: Modern
Model Number: JJ-PKM-C01-L
Input Voltage: 24VDC
Protection Lever: IP55
Max Single-leaf Length: 1.5M
Max Single-leaf Weight: 150kg
Environment Temperature: -20 To + 55 Celsius Degree
Motor's Power: 40W
Rotational Speed: 250PRM
Rod's Running Speed: 1.6CM/S
Rod's Max Travel: 300mm
Type: Swing Gate Opener
Basic Infomation
Model Number: JJ-PKM-C01-L
Payment & Shipping Terms
Packaging Details: one set in one carton, 30 sets in one pallet
Product Description
Product Description

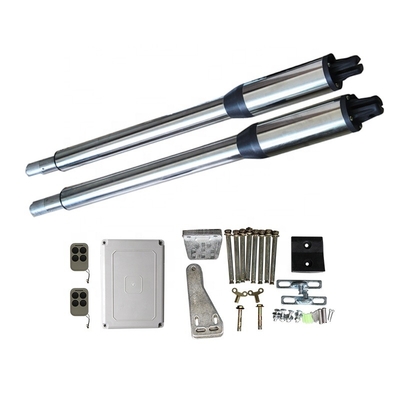

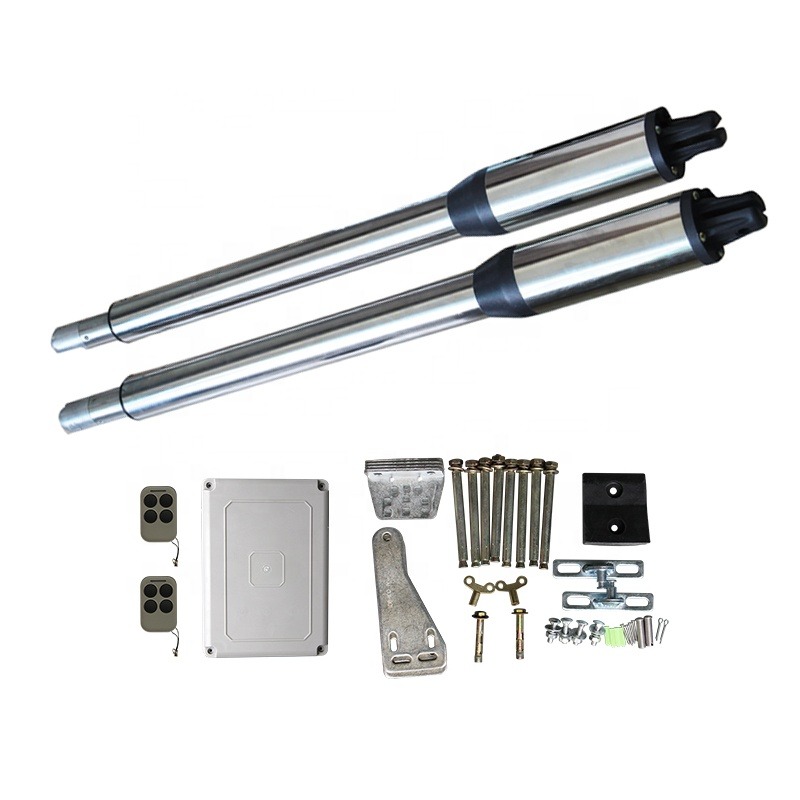

The PKM-C01 swing gate opener is main made of use for light weight swing gate, max single gate dure weight 200kgs, max single gate dure length 2 meters, with much competitve price and stable working function to make the model popular in Asia, Europe etc. Wifi app control, solar system match, digital LED board, gate opener accessories can well connect.
The model swing gate opener also can work solar system
Solar full set includes:
2 arm
1 20W solar panel with brackets
2 pcs 12V 7AH/9AH battery
1 solar charger
1 big box
2 remote control
1 set hardware accessories

Specification:

1.Filed tested by EU and US clients with Min.30000 open/close cycels
2.Clutch device for power failure,use a special key release clutch,operate the gate manually.
3.Stop working when gate meets obstacle.
4.Soft start and soft stop ,avoid some accidents
5.Metal pinion gear driving design with low working noise
6.Adjustable opening/closing interval between master and slave gate.
7.Adjusting residence sensitivity
8.24VDC Swing gate opener can work for solar power system and back up battery

Product Name
Automatic Swing gate opener PKM-C01
Material
stainless steel
Motor power
24VDC 40w
Max single-leaf length
2M
Max single-leaf weight
200kg
Rod's max travel
300mm
Protection class
IP55
Working speed
1.6cm/s
Products Show
Optional accessories

Wireless keypad

TKM-01

Battery inside ,wireless

Waterproof

Input password to open gate

Photocell

HW-07

1.dimension: 9.3cm*4.4cm*4.1cm
2.The photocells should be installed at height of more than 20cm above the ground.
3.And the distance between transmitter and receiver should about 12m

Flashing light

JD-06
AC/DC 12V-265V.

With antenna

Wifi mobile phone control device

Control gate by moblie phone APP with wifi anywhere any time.

Do you want to control your gate , your light by your smart phone? Smart hub can help you realize it ,not only gate , but also light , garage , curtain and other RF signal control system .

Related products
PKM-C01-L
150kg,2m/leaf,
cheapest model
PKM-C02
Per leaf gate :300-350KG,
2.5M/3.5M/5M optional
PKM C03
350kg,3metre/leaf
Nice design, high quality
Cheap model metal base sliding gate opener
multi-frequency multi brand remote
garage door hardware replacement
