Home /Products/Door Opener Kit/Traditional Heavy Duty Powerful 1000N, Chain Drive 1200N Electric Remote Control Garage Door Opener

Traditional Heavy Duty Powerful 1000N, Chain Drive 1200N Electric Remote Control Garage Door Opener

1 set
MOQ
Traditional Heavy Duty Powerful 1000N, Chain Drive 1200N Electric Remote Control Garage Door Opener
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 2 Years
After-sale Service: Online Technical Support
Project Solution Capability: Graphic Design
Application: Villa, Residencial Sectional Overhead Door
Design Style: Traditional
Model Number: ZTGD1000
Product Name: ZTGD1000 Garage Door Opener
Certificate: CE.ROHS
Motor: 24V DC
Driving Force: 800N 1000N 1200N
Function: Automatic Door Controller
Rail Length: 3/3.3/3.6/3.9m
Light: LED Light
Radio Frequency: 433.92/868MHz
Remote Distance: 25-35m
Basic Infomation
Certification: CE.ROHS
Model Number: ZTGD1000
Payment & Shipping Terms
Packaging Details: 2 kinds of packing style: 1: one set of opener and rail pack in one color box. 2: four opener pack in one color box, rail pack separately by carton or pallet
Supply Ability: 50000 Set/Sets per Month
Product Description
Products Description

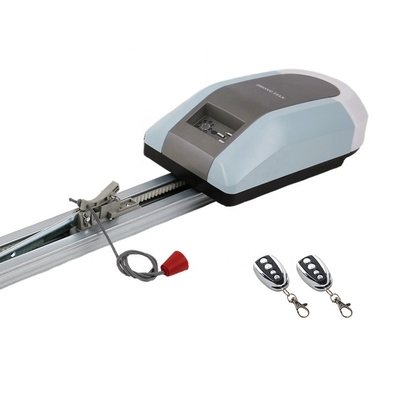

ZTGD Garage Door Opener
ZHONGTIAN Garage door opener is a motorized device that opens and closes garage door controlled by remote control. It has pulling force 800N, 1000N, 1200N, and customized rail length 3m, 3.3m, 3.6m, 3.9m, 4.2m. It can operate single or double garage doors door area up to 18 square meters, door height up to 3.5 meters.

It's available to connect DC 24V backup battery to make sure working normally when power failure.
The Smart WiFi lets users monitor, receive alerts and control the garage door opener away from home. Peace of mind knowing if your garage door is open or closed anywhere and any time.
Specification
Item
ZTGD800
ZTGD1000
ZTGD1200
Pull and Push Force
800N
1000N
1200N
Rated Voltage
AC:220-240V(50HZ-60HZ)
AC:220-240V(50HZ-60HZ)
AC:220-240V(50HZ-60HZ)
Motor Power
154W Max
200W Max
260W Max
Apply Door Size
12 ㎡ Max
15 ㎡ Max
17 ㎡ Max
Rail Length
3m,3.3m,3.6m,3.9m
3m,3.3m,3.6m,3.9m
3m,3.3m,3.6m,3.9m
Opener Noise
Below 60db
Below 60db
Below 60db
Running Speed
120mm/s
120mm/s
120mm/s
Remote  Distance
50m
50m
50m
Remote Control Code
Rolling Code
Rolling Code
Rolling Code
Remote Frequency
433.92MHZ
433.92MHZ
433.92MHZ
Auto Lighting
Turn off after 3~5minutes
Turn off after 3~5minutes
Turn off after 3~5minutes
Temperature range
-45℃~70℃(-49℉~+158℉)
-45℃~70℃(-49℉~+158℉)
-45℃~70℃(-49℉~+158℉)
Product Features
QUIET & RELIABLE
* DC Motor provide smooth and ultra-quiet operation
* Soft Start & Soft Stop technology which will assist in extending the life of the opener, and protect doors
* Battery backup ensures access even when the power is out.

SAFE & SECURE
* Rolling Code assures a new code is sent every time the remote control is used, the code with over 4.29 billion different
possible combinations
* Safety automatic reversing will stop the door from closing if the garage door senses any obstacle while in operation
* Automatic force setting, monitors and adjusts the force needed to open your garage door.
* Manual Release handle allows you to open your garage door manula when power failure.
* LED Courtesy Ligh turn on automatically when the doors are operated , turn off 3 minutes later automatically.
* Electronic limits with power fail memory
* Auto close door function available
* External terminal for Wall push button, photocell, warning light
Smart Wifi Garage Door Opener
WiFi Smart Life APP: Monitor, Control your garage doors through smartphone, tablet, or any smart device, from anywhere any time!
Optional Accessory
Garage Door Operator accessories
Wireless wall push buttonWireless keypad
Backup battery
Photocell Infrared Sensor
Emergency Release Lock
Smart WiFi module
Product Application
Garage door Motor can works for most residential Garage Door types:
* Sectional Garage Door,
* Tilting Garage Doors

Max Door Area: 18 square meters
Max Door Height: 3.9 meters
Product packaging
INCLUDED IN THE BOX:
1 x ZTGD motor unit
1 x rail assembly
2 x 4 button remotes
1 x Mounting brackets
1 x Instruction Manual
Packing Ways:

1. Motor and Single-piece Rail packed separately
2. Motor and 3-pieces Rail packed in one carton

Option 1

Motor and Single-piece Rail packed separately.

Option 2

Motor and 3-pieces Rail packed in one carton
Certifications
Our Certificates: CE, SAA, RCM, SABER, ROHS, FCC.
Company Profile
Shenzhen ZhongTian Door Co., Ltd was founded in 2004, located in Shenzhen, China. We have been specializing in developing and producing garage door openers, roller door openers more than 17 years.

We devote to the research and development of the most intelligent, feature packed, best value and robust garage door openers on the market. With our professional professional R&D team, in-house PCB production lines, we keep our products up to the top advanced technology of the world. We perform strict and accurate tests to ensure the highest quality and safety standards. ZT Door Openers comply with -certificate of CE, SAA, SASO, C-Tick, TUV for different market distribution.
