Features

Specifications

Warranty: 1 Year

After-sale Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement

Project Solution Capability: Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation, NONE

Application: Farmhouse

Design Style: Rustic

Name: Motor

Type: Accordion Doors

Color: Black

Basic Infomation

Payment & Shipping Terms

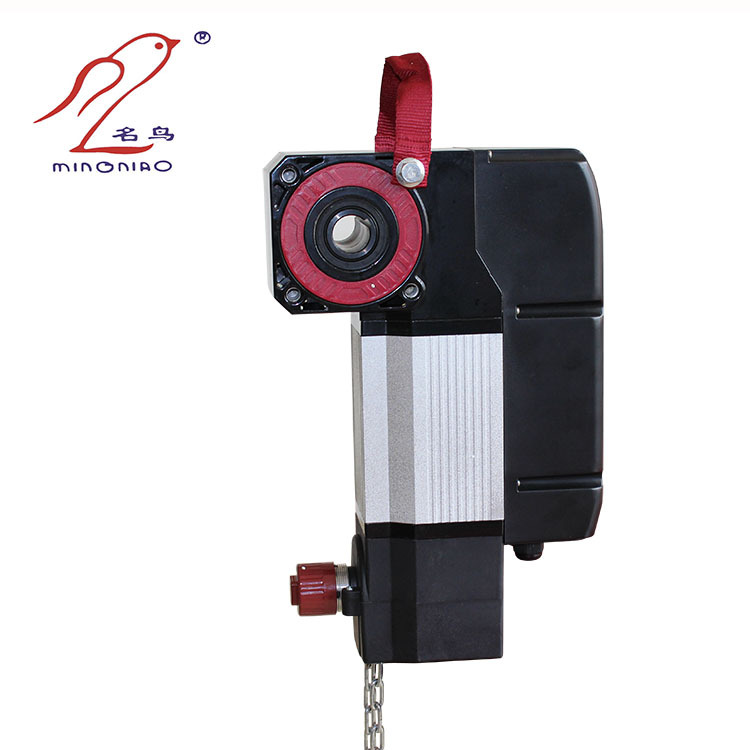

Packaging Details: Carton packed fill with foam,can be customized one set in 2 cartons:1 ctn for main motor,1 ctn for accessories AC/DC flange mounted roller shutter door motor for roller shutters

Product Description

1. The operator is composed of motor, gearbox, manual release mechanism and control system.
2. Using high efficiency worm reducer, large speed ratio, high efficiency, low power, safety and good
self-locking.
3. The operator is oil submerging ,good lubrication, low noise, long use life.
4. The built-in control system with remote control, manual control, limiting accurate, convenient adjustment.
5.The motor with thermal protection and overload automatic shutdown protection function.
6. Nice design, beautiful appearance, compact structure, small volume.
7.The suitable working environment temperature is between -20 ºC~ 50 ºC, IP54 protection class with stable pe
rformance and safety.
8. Some customized special specifications for customer request.
The industrial door motors always applicate in warehouse, factory,commercial door, logistic, airport and so on.

Model	GYT50(Y)	GYT70(Y)	GYT60S(Y)	GYT100S(Y)
Input Voltage	AC220V	AV220V	AC380V	AC380V
Rated Power	300W	500W	300W	450W
Startup Torque	35N.m	60N.m	60N.m	100N.m
No-load Running Time	15min	15min	25min	25min
Maximum door weight	800kg	1200kg	1200kg	2000kg
Total weight	13kg	14kg	13kg	14kg
Retarding Mechanism	Mechanism completely built with cooper worm wheels and worm rods
No-load Rotating speed	24r/min
Lubrication	Oil submerging
Thermal Protective Temperature	120ºC
Ambient Temperature	-20ºC~+45ºC
Working System	S2 20% (continuous running under load not exceeding 10min)
Noise	≤55dB
Protective level	IP 54
Mode of supportive power-control	Split type (All-in-one)
Mode of manual chain	Universal chain style
Type of limit switch	Electronic limit
Swift release upon power failure	Pull-rope release(incorporated)				None
Chain-wheel specification	Pitch 12.7mm Humber of teeth 20				5-parts-16-teeth
Max. Limited Journey	20 rounds rotation of the output shaft				External journey switch

A. Balance Spring B. Door Opener C. Power Distribution Box D. Alarm Lamp (Optional) E. Control Unit F. Safety Airbag G. Loop Detector H. Buffered Device

Related Products

Packing&Shipping

Company Introduction

Zhangzhou Mingniao Electronic Machinery Co., Ltd. is a professional research and production of various forms of electric door opener and inverter welding machine high-tech enterprises. The company was founded in 2000, the existing equipment is excellent, the technical force is abundant, has the strong mechanical processing ability and the microcomputer control system design ability, can support the mechatronics function for the general user in time. The inverter welder designed and developed by our company adopts advanced inverter power source technology and imported IGBT module. The inverter frequency can reach 20kHz, the dynamic response speed is faster, the function is perfect, the performance is excellent, and the welder has high reliability. It can meet the requirements of high-quality welding and is a reliable welding equipment for users. Your need is our pursuit! The company diligently maintains the brand, develops the market honestly, pursues the perfect function with the meticulous design, the accurate manufacture guarantees the product quality, develops the market with the sincere service attitude, strives for the survival with the quality With the aim of quality and development, our products are sold all over the country and exported all over the world.

FAQ

FAQ
Q1. How long is your products' warranty?
A: All our products have 1 years warranty.
Q2. Do you have CE certification?
A: Yes, we do have CE certification. We have CE for our complete roller doors.
Q3.How can i get a price of needed garage door?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q4.We want to be your agent of our area. How to apply for this?
A: Please send your ideal and your profile to any e-mails of us .Let's cooperate.
Q5.I am a sall wholesaler, do you accept small order?
A: It's no problem is you are a small wholesaler, we would like to grow up with you together.
