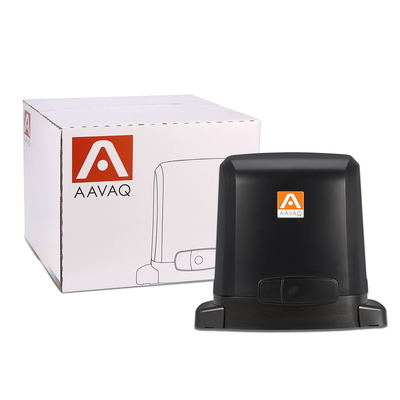

Dual Function AAVAQ Q3 Smart WiFi DC Automatic Control Electric Gate Motor Operator Sliding Remote Gate Opener

1 Unit
MOQ
$340.00(1 - 9 Units) $170.00(10 - 49 Units) $136.00(50 - 199 Units) $119.00(>=200 Units)
Price
Dual Function AAVAQ Q3 Smart WiFi DC Automatic Control Electric Gate Motor Operator Sliding Remote Gate Opener
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3 Years
After-sale Service: Online Technical Support, Free Spare Parts, Return And Replacement
Project Solution Capability: Others
Application: Villa, Sliding Gate
Design Style: Null
Model Number: Q3
Product Name: DC Motor Sliding Gate Opener
Keyword: Sliding Gate Opener
Feature: Double Gate Function
Max. Gate Weight: 300KG
Motor: 24V DC
Safety Protection: Obstruction Sensing, Infrared Photobeam Connection
Radio: KEELOQ Hopping Code, 433MHz
Remote Distance: 80m
Remote Control: 2 Remotes
Basic Infomation
Model Number: Q3
Payment & Shipping Terms
Packaging Details: LCL/FCL: - Sliding Gate Opener Unit, two remote controls and complete set of installation accessories - all stacked on wodden pallets - app. 1000 sets per 20' Container
Product Description
Product Paramenters
Technical Specifications
Q3
Maximum Gate Weight
300kg
Maximum Gate Width
6m
Maximum Pulling Force ( When Started )
25kgf
Maximum Pulling Force ( When Running )
15kgf
Maximum Speed
200mm/s
Duty Cycle
40%
Rated Current / Maximum Current
3A / 10A
Nominal Input Voltage
220V AC ± 10%, 50 / 60Hz
Motor
24V DC
Transformer
100W
Degree of Protection
IP54
Slow Start / Slow Stop Function
Yes
Safety Obstruction Sensing
Yes
Connect to APPLink Smartphone Controller
Available
Operating Temperature
-20°C to +50°C
Limit Switch Type
Mechanical limit switches with electronic running way adaption
Radio
KEELOQ Hopping Code, 433MHz
TX Capacity
Standard 2, Max. 25 Transmitter ( Remotes )
Maximum Distance
80m
Weight
11.5kg
Products Description
Recommend Products
Product packaging
Certifications
Company Profile
AAVAQ develops and produces Industrial Door Openers, Garage Door Openers, as well as Sliding- and Swing Gate Openers. The Door and Gate Automation Industry has experienced a remarkable evolution in recent years. To meet the ever-increasing demands of a discerning market while addressing commercial viability, ease of installation and servicing has presented the industry with challenges previously too great to conquer. We at AAVAQ are dedicated to Door and Gate Automation. After all, that's all we do! From the controlled manufacturing process, through our streamlined distribution networks, installer-friendly and a host of advantages for the end user, AAVAQ really closes the door on the opposition. Innovators of unique patented door automation technologies, combined with over 30 years of industry experience, AAVAQ represents the future of the Door and Gate Automation.
